Shaft Alignment Tools

Shaft Misalignment causes vibration, failure of bearings, seals, etc and equipment damage.

Shaft Alignment Kit is used for Accurately Aligning the Shafts of Pump and Motor.

• It consists of an Aluminium vee Block that can be clamped on the Hub of the coupling by wing nuts.
• The kit has two precision spirit levels in the vee block to get accurate indexing of 90°, 180°, 270° and 360°.
• Suitable extension pins, dial holder pins, clamps are provided to take care of different spacer lengths between couplings.
• There is a facility of using two Dial Gauges, one for measuring Radial misalignment and other for Axial.

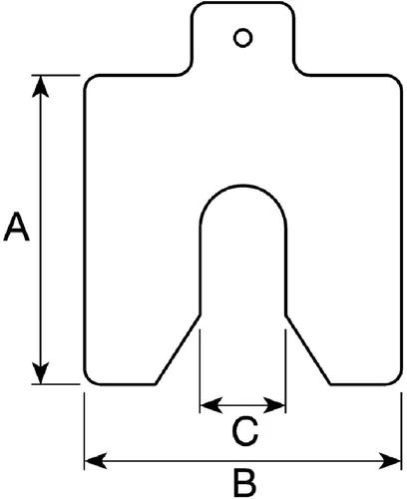

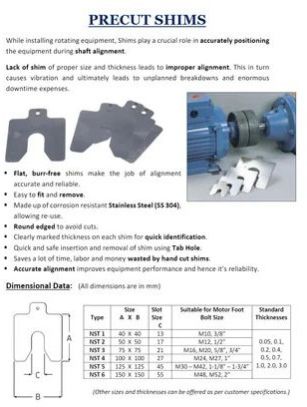

While installing rotating equipment, Shims play a crucial role in accurately positioning the equipment during shaft alignment.

Lack of shim of proper size and thickness leads to improper alignment. This in turn causes vibration and ultimately leads to unplanned breakdowns and enormous downtime expenses.

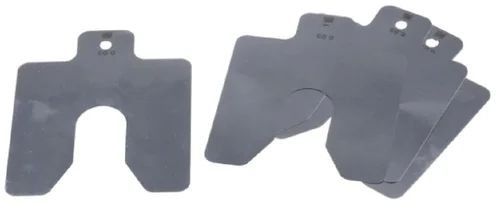

• Flat, burr‐free shims make the job of alignmenT accurate and reliable.
• Easy to fit and remove.
• Made up of corrosion resistant Stainless Steel (SS 304), allowing re‐use.
• Round edged to avoid cuts.
• Clearly marked thickness on each shim for quick identification.

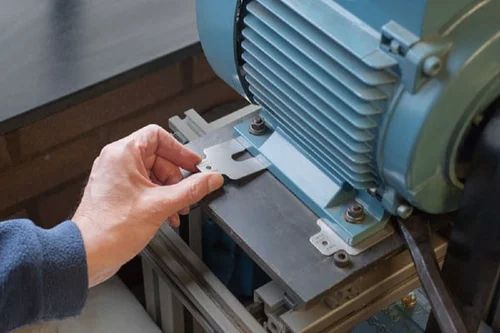

• Quick and safe insertion and removal of shim using Tab Hole.
• Saves a lot of time, labor and money wasted by hand cut shims.
• Accurate alignment improves equipment performance and hence it’s reliability.
